Mac-Eight BOARD TO BOARD CONNECTOR

BOARD TO BOARD CONNECTOR
(SUPER SMALL TYPE)

Board To Board Connector [MB Series] (H=2.0 to 5.0mm) (10pcs/pack)

EXAMPLE

Solder application.
1.27, 2.54mm pitch are available.

Material	Resin part	PCT black (UL94V-0)
Material	Pin part	Phosphorus bronze
Finsh	Pin part	Au plating over Ni
Recommended through-hole diameter (phi mm)	0.6
Rated current	2A
Insulation resistance	500M ohm or more
Dielectric strength	1000V AC, DC 1min (MB-3 series)
Dielectric strength	700V AC, DC 1min (MB-1 series)
Temperature range (degrees Celsius)	-40 to +125

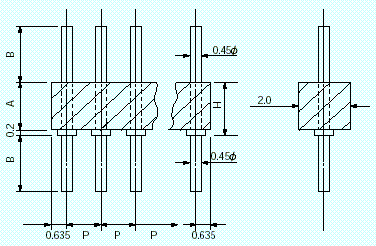

Model No.	P (mm)	B (mm)	A (mm)	H (mm)	Max pins
MB-1-2.0	1.27	2.2	1.8	2.0	40
MB-1-2.5	1.27	2.2	2.3	2.5	40
MB-1-3.0	1.27	2.2	2.8	3.0	40
MB-1-3.5	1.27	2.2	3.3	3.5	40
MB-1-4.0	1.27	2.2	3.8	4.0	40
MB-1-4.5	1.27	3.0	4.3	4.5	40
MB-1-5.0	1.27	3.0	4.8	5.0	40
MB-3-2.0	2.54	2.2	1.8	2.0	20
MB-3-2.5	2.54	2.2	2.3	2.5	20
MB-3-3.0	2.54	2.2	2.8	3.0	20
MB-3-3.5	2.54	2.2	3.3	3.5	20
MB-3-4.0	2.54	2.2	3.8	4.0	20
MB-3-4.5	2.54	3.0	4.3	4.5	20
MB-3-5.0	2.54	3.0	4.8	5.0	20

Model No.	P (mm)	B (mm)	A (mm)	H (mm)	Max pins
MB-1-1.2H	1.27	4.5	1.0	1.2	40
MB-1-2.0H	1.27	4.5	1.8	2.0	40
MB-1-2.5H	1.27	4.5	2.3	2.5	40
MB-1-3.0H	1.27	4.5	2.8	3.0	40
MB-1-3.5H	1.27	4.5	3.3	3.5	40
MB-1-4.0H	1.27	4.5	3.8	4.0	40
MB-1-4.5H	1.27	4.5	4.3	4.5	40
MB-1-5.0H	1.27	4.5	4.8	5.0	40
MB-3-1.2H	2.54	4.5	1.0	1.2	20
MB-3-2.0H	2.54	4.5	1.8	2.0	20
MB-3-2.5H	2.54	4.5	2.3	2.5	20
MB-3-3.0H	2.54	4.5	2.8	3.0	20
MB-3-3.5H	2.54	4.5	3.3	3.5	20
MB-3-4.0H	2.54	4.5	3.8	4.0	20
MB-3-4.5H	2.54	4.5	4.3	4.5	20
MB-3-5.0H	2.54	4.5	4.8	5.0	20

See MB series (H=5.5 to 22mm) for H = 5.5 or more.

HOW TO ORDER
MB-1-4.0-10P
Put # of pins if necessary.
