BOARD TO BOARD CONNECTOR
(SUPER SMALL TYPE)
Board To Board Connector (2 Row Type)
[MXW-3 Series] (10pcs/pack)
|
- 20 pins connected each at 2.54mm pitch in 2 row.
| Material | Resin part | PCT black (UL94V-0) |
|---|
| Pin part | Phosphorus bronze |
| Finsh | Pin part | Au plating over Ni |
|---|
Recommended through-hole
diameter (phi mm) | 0.6 |
|---|
| Rated current | 2A |
|---|
| Insulation resistance | 500M ohm or more |
|---|
| Dielectric strength | 1000V AC, DC 1min |
|---|
Temperature range
(degrees Celsius) | -40 to +125 |
|---|
| Applicable socket pin | MEW-3-1 |
|---|

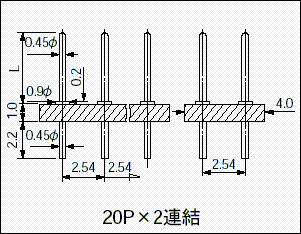

| Model No. | L(mm) | Max pins | H(mm) | Applicable socket pin |
|---|
| MXW-3-0 | 3.0 | 20 x 2 | | |
| MXW-3-1 | 3.7 | 20 x 2 | 3.5 | MEW-3-1 |
| MXW-3-2 | 4.4 | 20 x 2 | 4.0 | MEW-3-1 |
| MXW-3-3 | 4.9 | 20 x 2 | 4.5 | MEW-3-1 |
| MXW-3-4 | 5.4 | 20 x 2 | 5.0 | MEW-3-1 |
*H is the space between PCBs with MEW-3-1.
- HOW TO ORDER
MXW-3-1-10PW
Put # of pins if necessary. (max 20PW)
#PW means # of pins on one side.
