INSERTS

With adsorption cap

Without adsorption cap

Screws are inserted from component and solder side

• Through hole chages to threaded hole(M2, M2.6, M3).

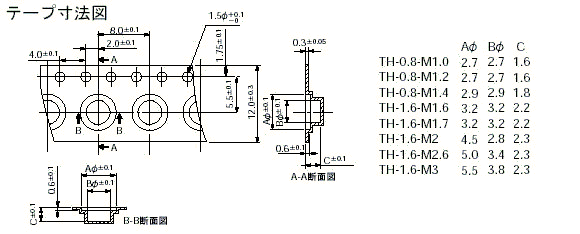

• Taping type has adsorption cap for vacuum pick. It needs to be removed after reflow.
• Material: Brass
• Finish: Sn plating over Ni
• Current rating

  TH-1.6-M2	: 20A
  TH-1.6-M2.6	: 20A
  TH-1.6-M3	: 30A

• Tightening Torque

  TH-1.6-M2	: 1.5kgf.cm (14.7N-cm) max.
  TH-1.6-M2.6	: 3kgf.cm (29.4N-cm) max.
  TH-1.6-M3 (X direction in dimension)	: 5kgf.cm (49N-cm) max.
  TH-1.6-M3 (Y direction in dimension)	: 3kgf.cm (29.4N-cm) max.

• Recommended PCB Thickness: 1.6mm
  (other PCB thickness applicable)
• Recommended Metal Mask Tickness: 150 to 200μ

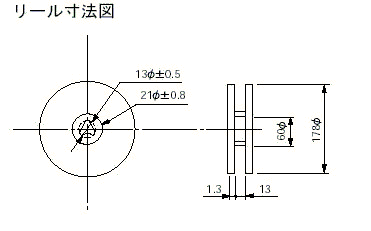

Dimensions

Recommended Pat Layout	Metal Mask Thickness Recommended: 200μ	P/N AΦ+0.1, -0 BΦ TH-1.6-M2 2.7 5.0 TH-1.6-M2.6 3.3 5.5 TH-1.6-M3 3.7 6.0
