Non-Threaded Inserts
[THB Series]		 PAT.P

Without adsorption cap
PCB is mounted
above chassis
Dimensions

THB-□-2 (AΦ=4.5 BΦ=3.0 CΦ=2.1 in dimension)
P/N
L
H
Qty
/ Reel
P/N
L
H
Qty
/ Reel
THB-1.5-2
1.5
0
400
THB-4.6-2
4.6
3.0
200
THB-2.1-2
2.1
0.5
400
THB-5.1-2
5.1
3.5
200
THB-2.6-2
2.6
1.0
400
THB-5.6-2
5.6
4.0
200
THB-3.1-2
3.1
1.5
400
THB-6.1-2
6.1
4.5
200
THB-3.6-2
3.6
2.0
400
THB-6.6-2
6.6
5.0
200
THB-4.1-2
4.1
2.5
400

THB-□-2.6 (AΦ=5.0 BΦ=3.6 CΦ=2.7 in dimension)
P/N
L
H
Qty
/ Reel
P/N
L
H
Qty
/ Reel
THB-1.5-2.6
1.5
0
400
THB-4.6-2.6
4.6
3.0
200
THB-2.1-2.6
2.1
0.5
400
THB-5.1-2.6
5.1
3.5
200
THB-2.6-2.6
2.6
1.0
400
THB-5.6-2.6
5.6
4.0
200
THB-3.1-2.6
3.1
1.5
400
THB-6.1-2.6
6.1
4.5
200
THB-3.6-2.6
3.6
2.0
400
THB-6.6-2.6
6.6
5.0
200
THB-4.1-2.6
4.1
2.5
400

THB-□-3 (AΦ=5.5 BΦ=4.1 CΦ=3.1 in dimension)
P/N
L
H
Qty
/ Reel
P/N
L
H
Qty
/ Reel
THB-1.5-3
1.5
0
400
THB-4.6-3
4.6
3.0
200
THB-2.1-3
2.1
0.5
400
THB-5.1-3
5.1
3.5
200
THB-2.6-3
2.6
1.0
400
THB-5.6-3
5.6
4.0
200
THB-3.1-3
3.1
1.5
400
THB-6.1-3
6.1
4.5
200
THB-3.6-3
3.6
2.0
400
THB-6.6-3
6.6
5.0
200
THB-4.1-3
4.1
2.5
400

Recommended
Pat Layout		 Metal Mask Thickness
Recommended: 150 to 200μ
P/N AΦ+0.1, -0 BΦ
THB-□-2 3.2 5.5
THB-□-2.6 3.8 6.0
THB-□-3 4.2 6.5

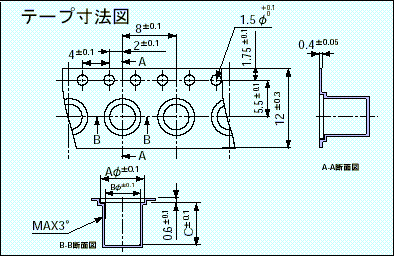

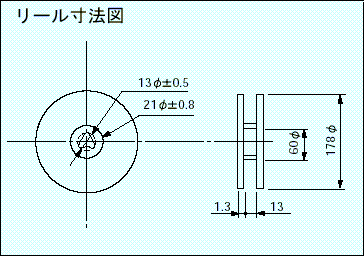

Tape & Reel Dimension

  • THB-1.5 to 4.1 : C=4.3
  • THB-4.6 to 6.6 : C=6.8

  • THB-□-2 :A=4.8 B=3.3
  • THB-□-2.6 : A=5.3 B=3.9
  • THB-□-3 : A=5.8 B=4.3
