MAC8 INSERTS

INSERTS

Non-Threaded Inserts [THC Series]	PAT.P

Stand-off type non-threaded inserts. This is mounted on PCB by inserting into through-hole.
Taping type has adsorption cap for vacuum pick. It needs to be removed after reflow.
Mounter should have automatic recognition system.
Bulk type (100pcs/pack) is available.
THC-1.6-2-B←put"B" for bulk.
Bulk type does not have adsorption cap.
Material: Brass
Finish: Sn plating over Ni
Recommended PCB Thickness: 1.6mm
(other PCB thickness applicable)

Dimensions

THC-1.6-□-2 (AΦ=4.5 BΦ=3.0 CΦ=2.1 in dimension)

P/N	H	Qty / Reel		P/N	H	Qty / Reel		P/N	H	Qty / Reel
THC-1.6-0.5-2	0.5	450		THC-1.6-3.5-2	3.5	200		THC-1.6-6.5-2	6.5	300
THC-1.6-1.0-2	1.0	450		THC-1.6-4.0-2	4.0	200		THC-1.6-7.0-2	7.0	300
THC-1.6-1.5-2	1.5	300		THC-1.6-4.5-2	4.5	400		THC-1.6-7.5-2	7.5	300
THC-1.6-2.0-2	2.0	300		THC-1.6-5.0-2	5.0	400		THC-1.6-8.0-2	8.0	300
THC-1.6-2.5-2	2.5	250		THC-1.6-5.5-2	5.5	350
THC-1.6-3.0-2	3.0	250		THC-1.6-6.0-2	6.0	350

THC-1.6-□-2.6 (AΦ=5.0 BΦ=3.6 CΦ=2.7 in dimension)

P/N	H	Qty /Reel		P/N	H	Qty /Reel		P/N	H	Qty /Reel
THC-1.6-0.5-2.6	0.5	450		THC-1.6-4.0-2.6	4.0	200		THC-1.6-7.5-2.6	7.5	300
THC-1.6-1.0-2.6	1.0	450		THC-1.6-4.5-2.6	4.5	400		THC-1.6-8.0-2.6	8.0	300
THC-1.6-1.5-2.6	1.5	300		THC-1.6-5.0-2.6	5.0	400		THC-1.6-8.5-2.6	8.5	250
THC-1.6-2.0-2.6	2.0	300		THC-1.6-5.5-2.6	5.5	350		THC-1.6-9.0-2.6	9.0	250
THC-1.6-2.5-2.6	2.5	250		THC-1.6-6.0-2.6	6.0	350		THC-1.6-9.5-2.6	9.5	250
THC-1.6-3.0-2.6	3.0	250		THC-1.6-6.5-2.6	6.5	300		THC-1.6-10.0-2.6	10.0	250
THC-1.6-3.5-2.6	3.5	200		THC-1.6-7.0-2.6	7.0	300

TH-1.6-□-3 (AΦ=5.5 BΦ=4.0 CΦ=3.1 in dimension)

P/N	H	Qty /Reel		P/N	H	Qty /Reel		P/N	H	Qty /Reel
THC-1.6-0.5-3	0.5	450		THC-1.6-4.0-3	4.0	250		THC-1.6-7.5-3	7.5	300
THC-1.6-1.0-3	1.0	450		THC-1.6-4.5-3	4.5	250		THC-1.6-8.0-3	8.0	300
THC-1.6-1.5-3	1.5	450		THC-1.6-5.0-3	5.0	250		THC-1.6-8.5-3	8.5	250
THC-1.6-2.0-3	2.0	450		THC-1.6-5.5-3	5.5	350		THC-1.6-9.0-3	9.0	250
THC-1.6-2.5-3	2.5	350		THC-1.6-6.0-3	6.0	350		THC-1.6-9.5-3	9.5	250
THC-1.6-3.0-3	3.0	350		THC-1.6-6.5-3	6.5	300		THC-1.6-10.0-3	10.0	250
THC-1.6-3.5-3	3.5	350		THC-1.6-7.0-3	7.0	300

Recommended
Pat Layout

Metal Mask Thickness
Recommended: 150 to 200μ

P/N	AΦ+0.1, -0	BΦ
THC-1.6-□-2	3.2	5.5
THC-1.6-□-2.6	3.8	6.0
THC-1.6-□-3	4.2	6.5

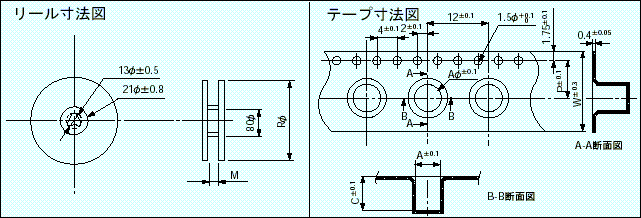

Reel & Tape Dimension

	C	M	R			A	P	W
THC-1.6-0.5 to 1.0	2.8	17.5	178		2 type (0.5 to 8.0)	4.8	7.5	16
THC-1.6-1.5 to 2.0	3.8	17.5	178		2.6 type (0.5 to 9.0)	5.3	7.5	16
THC-1.6-2.5 to 3.0	4.8	17.5	178		3 type (0.5 to 9.0)	5.8	7.5	16
THC-1.6-3.5 to 4.0	5.8	17.5	178		2.6 type (9.5 to 10)	5.3	11.5	24
THC-1.6-4.5 to 5.0	6.8	17.5	254		3 type (9.5 to 10)	5.8	11.5	24
THC-1.6-5.5 to 6.0	7.8	17.5	254
THC-1.6-6.5 to 7.0	8.8	17.5	254
THC-1.6-7.5 to 8.0	9.8	17.5	254
THC-1.6-8.5 to 9.0	10.8	17.5	254
THC-1.6-9.5 to 10	11.8	25.5	254
