LED SPACER
LED spacer
[LR Series] (10pcs/pack)
PAT
This is for perpendicular or pararell mounting of Bi-lead and Tri-lead LED to PCB.

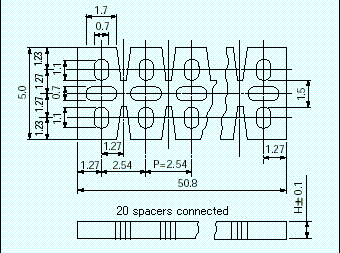

20 spacers connected at 2.54mm pitch.
Cut to pieces if necessary.
Material
PCT resin (UL94V-0)
Temperature range
(degrees Celsius)
-40 to +125
Recommended LED
head size (phi mm)
3, 5
Color
Black
Model No.
H
(mm)
LR-1
1
LR-1.5
1.5
LR-2
2
LR-2.5
2.5
LR-3
3
LR-3.5
3.5
LR-4
4
LR-4.5
4.5
LR-5
5
LR-5.5
5.5
LR-6
6
