Mac-Eight BOARD TO BOARD CONNECTOR (SMT)

BOARD TO BOARD CONNECTOR (SMT)

Board To Board Connector [HQS Series] (10pcs/pack)	PAT

Dimension plan

Specification is the same as HQ Series.
This series has pins on both ends which make the placement easy.

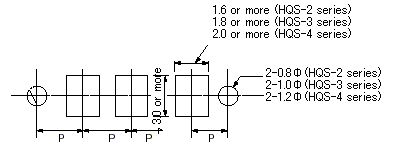

Recommended pat layout

Model no.	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	P (mm)
HQS-2-5	0.6	5	1.0	1.6	2.0	0.635	2.54
HQS-2-8	0.6	8	1.0	1.6	2.0	0.635	2.54
HQS-2-10	0.6	10	1.0	1.6	2.0	0.635	2.54
HQS-3-5	0.8	5	1.2	1.8	2.0	1.27	2.54
HQS-3-8	0.8	8	1.2	1.8	2.0	1.27	2.54
HQS-3-10	0.8	10	1.2	1.8	2.0	1.27	2.54
HQS-3-15	0.8	15	1.2	1.8	2.0	1.27	2.54
HQS-4-5	1.0	5	1.4	1.8	2.0	1.27	2.54
HQS-4-8	1.0	8	1.4	1.8	2.0	1.27	2.54
HQS-4-10	1.0	10	1.4	1.8	2.0	1.27	2.54
HQS-4-15	1.0	15	1.4	1.8	2.0	1.27	2.54

*Notice
When long connected type is used, it may happen to bend on reflow.
Use of glue to prevent from bending is recommendable.

HOW TO ORDER
HQS-3-5-10P
Put # of pins if necessary.
OAS series have pins for the placement on both sides
and this quantity includes 2 pins for the placement on both ends.
