Mac-Eight BOARD TO BOARD CONNECTOR (SMT)

BOARD TO BOARD CONNECTOR (SMT)

Board to Board Connector [OQWS Series] (10pcs/pack)	PAT

Model no.	A (mm)	B (mm)	C (mm)	D (mm)	E (phi mm)	P (mm)	Max pin

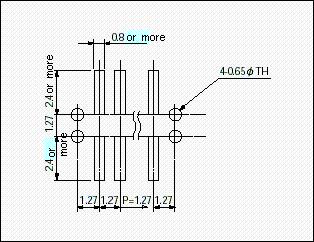

OQWS-11-4.0	4.0	0.635	1.27	3.27	0.45	1.27	40x2
OQWS-11-4.2	4.2	0.635	1.27	3.27	0.45	1.27	40x2
OQWS-11-5	5.0	0.635	1.27	3.27	0.45	1.27	40x2
OQWS-11-6.5	6.5	0.635	1.27	3.27	0.45	1.27	40x2

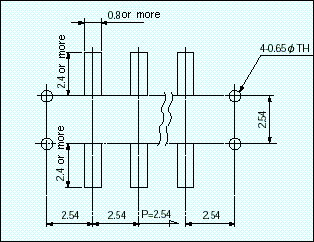

OQWS-13-4.0	4.0	1.27	2.54	4.54	0.45	2.54	20x2
OQWS-13-4.2	4.2	1.27	2.54	4.54	0.45	2.54	20x2
OQWS-13-5	5.0	1.27	2.54	4.54	0.45	2.54	20x2
OQWS-13-6.5	6.5	1.27	2.54	4.54	0.45	2.54	20x2
OQWS-01-4.0	4.0	0.635	1.27	3.27	0.40	1.27	40x2
OQWS-01-4.1	4.1	0.635	1.27	3.27	0.40	1.27	40x2
OQWS-01-4.6	4.6	0.635	1.27	3.27	0.40	1.27	40x2
OQWS-01-5.1	5.1	0.635	1.27	3.27	0.40	1.27	40x2
OQWS-03-4.0	4.0	1.27	2.54	4.54	0.40	2.54	20x2
OQWS-03-4.1	4.1	1.27	2.54	4.54	0.40	2.54	20x2
OQWS-03-4.6	4.6	1.27	2.54	4.54	0.40	2.54	20x2
OQWS-03-5.1	5.1	1.27	2.54	4.54	0.40	2.54	20x2

HOW TO ORDER
OQWS-11-4.0-10PW
Put # of pins if necessary.
#PW means # of pins on one side.
OQWS series have pins for the placement on both sides
and this quantity includes 2 pins for the placement on both ends.
