Mac-Eight TERMINAL FOR HYBRID IC (SMT)

TERMINAL FOR HYBRID IC (SMT)

Terminal For Hybrid IC [HZR Series] (10pcs/pack)	PAT

Easy to make Hybrid IC for SMT by inserting pin part to through-hole and soldering.

Material	Pin part	Brass
Material	Resin part	PCT black (UL94V-0)
Finish	HZR-G	Au plating over Ni
Finish	HZR-S	Sn plating over Cu
Recommended male pin diameter (phi mm)	0.7
Rated current	2A
Insulation resistance	500M ohm or more
Dielectric strength	700V AC, DC 1min (HZR-1)
Dielectric strength	1000V AC, DC 1min (HZR-3)

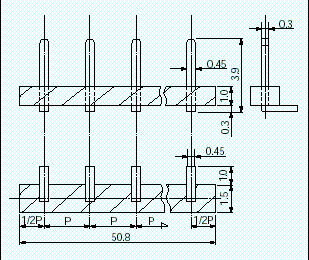

Model No.	P (mm)	Max pin	Solder
HZR-1-G	1.27	40	Au plating
HZR-1-S	1.27	40	Sn p
HZR-3-G	2.54	20	Au p
HZR-3-S	2.54	20	Sn p

HOW TO ORDER
HZR-1-G-10P
Put # of pins if necessary.
