Jumper Socket
[HHP Series] |
PAT |
|---|
| |
| HHP-2 | HHP-3 |
|---|
| How to use |
|---|
 |
 |
| Dimension plan |
 |
| HHP-2 |
 |
| HHP-3 |
| Material | Pin part | Bellium copper |
|---|---|---|
| Resin part | PCT black (UL94V-0) | |
| Finsh | Contact part | Au plating over Ni |
| Recommended through-hole diameter (phi mm) | 0.3 | |
| Rated current | 1A | |
| Insulation resistance | 500M ohm or more | |
| Contact resistance | 10m ohm or less | |
| Dielectric strength | 500V AC, DC 1min (MC-1 series) | |
| Mating/unmating (times) | 100 times or more | |
| Mating/unmating forces | 50g or more | |

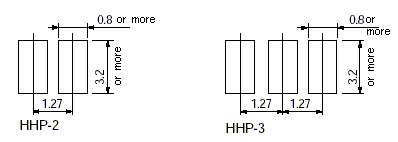

| Recommended pat layout |
|---|
 |
| Model No. | Packing |
|---|---|
| HHP-2 | Magazine (100pcs/pack) |

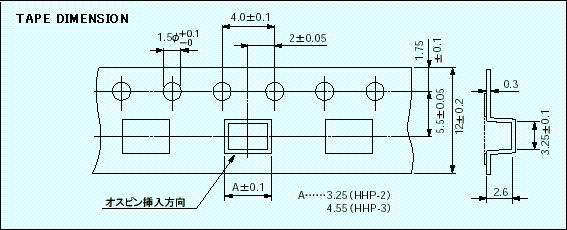

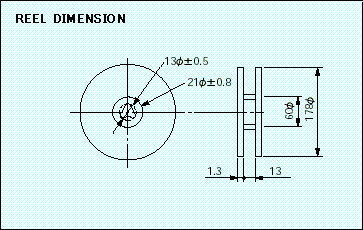

| HHP-2-T | Reel (700pcs/reel) |
| HHP-3 | Magazine (100pcs/pack) |
| HHP-3-T | Reel (700pcs/reel) |
