SOCKET (SMT)
Socket
[PES-1] (10pcs/pack)
|
PAT
|

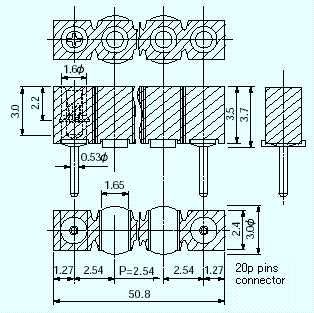

Dimension plan |
![](../../../img/smt/socket/pes1d.gif) |
- Specification is the same as PEM-1
- This model has pins on both ends which make the placement easy.

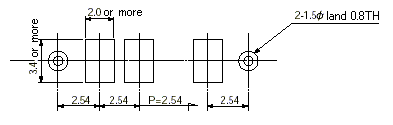

Recommended pat layout |
![](../../../img/smt/socket/pes1u.gif) |
- HOW TO ORDER
PES-1-10P
This quantity includes 2 pins for the placement on both ends.
Put # of pins if necessary. (max 20 pins)
