Mac-Eight SOCKET PIN

SOCKET PIN

Socket Pin [AA Series] (10pcs/pack)	PAT

Material	Resin part	PCT black (UL94V-0)
	Body part	Brass
	Contact part	Beryllium copper
Finsh	Body part	Sn plating over Ni
Finsh	Contact part	Au plating over Ni
Recommended through-hole diameter (phi mm)	0.7
Recommended male pin diameter (phi mm)	0.35 to 0.47
Rated current	1A
Insulation resistance	500M ohm or more
Contact resistance	10m ohm or less
Dielectric strength	500V AC, DC 1min (AA-1 series)
Dielectric strength	1000V AC, DC 1min (AA-3 series)
Mating/unmating (durability)	100 times or more
Mating/unmating forces	30g or more
Temperature range (degrees Celsius)	-40 to +125

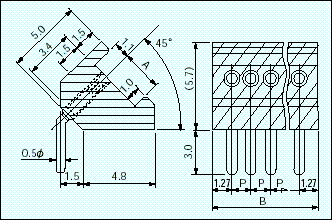

Model No.	A (mm)	B (mm)	P (mm)	Applicable board thickness (mm)	Applicable male pin diameter (phi mm)	Max pin
AA-1-0.6	1.8	52.07	1.27	0.6	MA-1-0	40
AA-1-0.8	2.0	52.07	1.27	0.8	MA-1-0	40
AA-1-1.0	2.2	52.07	1.27	1.0	MA-1-0	40
AA-1-1.2	2.4	52.07	1.27	1.2	MA-1-0	40
AA-1-1.6	2.8	52.07	1.27	1.6	MA-1-0	40
AA-3-0.6	1.8	50.8	2.54	0.6	MA-3-0	40
AA-3-0.8	2.0	50.8	2.54	0.8	MA-3-0	40
AA-3-1.0	2.2	50.8	2.54	1.0	MA-3-0	40
AA-3-1.2	2.4	50.8	2.54	1.2	MA-3-0	40
AA-3-1.6	2.8	50.8	2.54	1.6	MA-3-0	40
