Socket Pin (Long Pin Type)
[WJ Series] (10pcs/pack) |
---|
![]() |

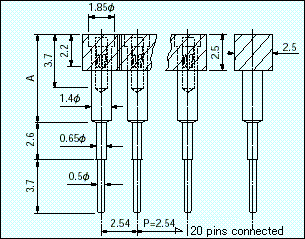

EXAMPLE |
---|
![]() |
![]() |
Material | Resin part | PBT black (UL94V-0) |
---|---|---|
Body part | Brass | |
Contact part | Beryllium copper | |
Finsh | Body part | Au plating over Ni |
Contact part | Au plating over Ni | |
Recommended through-hole diameter (phi mm)/th> | 0.8 | |
Recommended male pin diameter (phi mm) | 0.45 to 0.6 | |
Rated current | 1A | |
Rated voltage | 125V AC, DC | |
Insulation resistance | 500M ohm or more | |
Contact resistance | 10m ohm or less | |
Dielectric strength | 1000V AC, DC 1min | |
Mating/unmating (durability) | 100 or more | |
Mating/unmating forces (1 pin) | 70g or more | |
Oscillation-proof | 10 to 2000Hz at 15G | |
Shock-proof | 150G | |
Temperature range (degrees Celsius) | -40 to +125 |
|
|
