Mac-Eight SPACER (RESIN)

SPACER (RESIN)

Circular Threaded Spacer (M2) [2AP, 2AQ Series] (100pcs/pack)

This type is made of metal in resin to make stronger.
Electrically insulated upper and lower parts for more than 10mm types.
Electrically no insulated upper and lower parts for less than 9mm types.

Material	Resin part	PBT black (UL94V-0)
Material	Metal part	Brass
Finish	Metal part	Ni plating
Temperature range (degrees Celsius)	-40 to +125

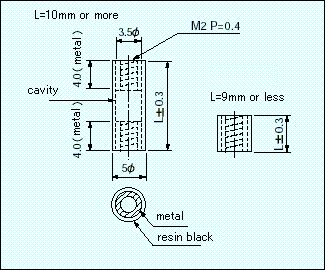

2AP series

Model No.	L (mm)
2AP-3	3
2AP-4	4
2AP-5	5
2AP-6	6
2AP-7	7
2AP-8	8
2AP-9	9
2AP-10	10
2AP-11	11
2AP-12	12
2AP-13	13
2AP-14	14

Model No.	L (mm)
2AP-15	15
2AP-16	16
2AP-17	17
2AP-18	18
2AP-19	19
2AP-20	20
2AP-25	25
2AP-30	30
2AP-35	35
2AP-40	40
2AP-45	45
2AP-50	50

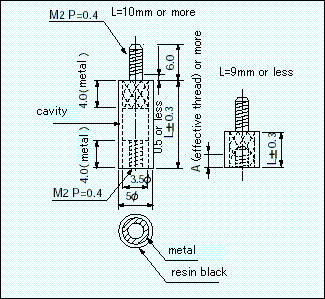

2AQ series

Model No.	L (mm)	A (mm) or more
2AQ-3	3	1.5
2AQ-4	4	2.5
2AQ-5	5	3
2AQ-6	6	3
2AQ-7	7	4
2AQ-8	8	5
2AQ-9	9	5
2AQ-10	10
2AQ-11	11
2AQ-12	12
2AQ-13	13
2AQ-14	14

Model No.	L (mm)
2AQ-15	15
2AQ-16	16
2AQ-17	17
2AQ-18	18
2AQ-19	19
2AQ-20	20
2AQ-25	25
2AQ-30	30
2AQ-35	35
2AQ-40	40
2AQ-45	45
2AQ-50	50
