Mac-Eight SPACER (RESIN)

SPACER (RESIN)

Circular Threaded Spacer (M4) [4AP, 4AQ Series] (100pcs/pack)

This type is made of metal in resin to make stronger.
Electrically insulated upper and lower parts for more than 10mm types.
Electrically no insulated upper and lower parts for less than 9mm types.

Material	Resin part	PBT black (UL94V-0)
Material	Metal part	Brass
Finish	Metal part	Nickel plating
Temperature range (degrees Celsius)	-40 to +125

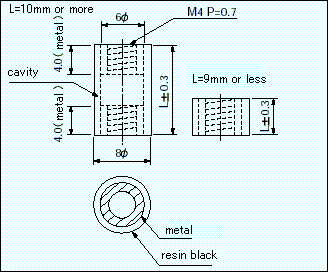

4AP series

Model No.	L (mm)
4AP-4	4
4AP-5	5
4AP-6	6
4AP-7	7
4AP-8	8
4AP-9	9
4AP-10	10
4AP-11	11
4AP-12	12
4AP-13	13
4AP-14	14
4AP-15	15
4AP-16	16

Model No.	L (mm)
4AP-17	17
4AP-18	18
4AP-19	19
4AP-20	20
4AP-25	25
4AP-30	30
4AP-35	35
4AP-40	40
4AP-45	45
4AP-50	50

4AP series

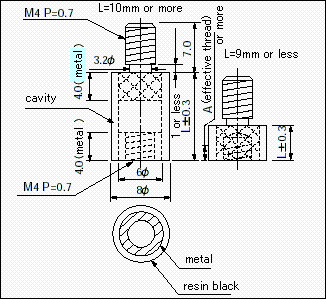

Model No.	L (mm)	A (mm) or more
4AQ-6	6	3
4AQ-7	7	4
4AQ-8	8	5
4AQ-9	9	5
4AQ-10	10
4AQ-11	11
4AQ-12	12
4AQ-13	13
4AQ-14	14
4AQ-15	15
4AQ-16	16
4AQ-17	17

Model No.	L (mm)
4AQ-18	18
4AQ-19	19
4AQ-20	20
4AQ-25	25
4AQ-30	30
4AQ-35	35
4AQ-40	40
4AQ-45	45
4AQ-50	50
