SPACER (RESIN)

• This type is made of metal in resin to make stronger.
• Electrically insulated upper and lower parts for more than 10mm types.
• Electrically no insulated upper and lower parts for less than 9mm types.

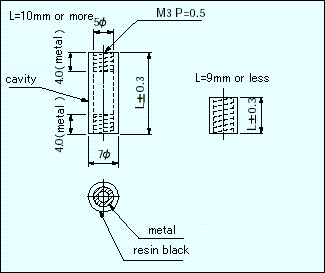

AP series
Model No. L (mm) AP-4 4 AP-5 5 AP-6 6 AP-7 7 AP-8 8 AP-9 9 AP-10 10 AP-11 11 AP-12 12 AP-13 13 AP-14 14 AP-15 15	Model No. L (mm) AP-16 16 AP-17 17 AP-18 18 AP-19 19 AP-20 20 AP-25 25 AP-30 30 AP-35 35 AP-40 40 AP-45 45 AP-50 50

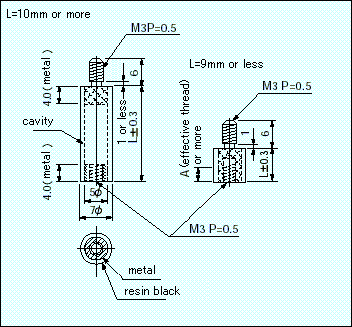

AQ series
Model No. L (mm) A(mm) or more AQ-4 4 2.5 AQ-5 5 3 AQ-6 6 4 AQ-7 7 4 AQ-8 8 4 AQ-9 9 4 AQ-10 10 AQ-11 11 AQ-12 12 AQ-13 13 AQ-14 14 AQ-15 15	Model No. L (mm) AQ-16 16 AQ-17 17 AQ-18 18 AQ-19 19 AQ-20 20 AQ-25 25 AQ-30 30 AQ-35 35 AQ-40 40 AQ-45 45 AQ-50 50
