SPACER (RESIN)

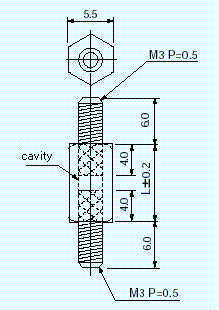

Hexagonal Threaded Spacer
[AR Series] (100pcs/pack)
Male screw is attached to the resin part.
Upper and lower parts are insulated electrically.
Material
Resin part
Acetal Copolymer (UL94HB)
Metal part
Brass
Finish
Metal part
Ni plating
Temperature range
(degrees Celsius)
-40 to +85
Color
Milky white
Model No.
L
(mm)
AR-9
9
AR-10
10
AR-11
11
AR-12
12
AR-13
13
AR-14
14
AR-15
15
AR-16
16
AR-17
17
Model No.
L
(mm)
AR-18
18
AR-19
19
AR-20
20
AR-25
25
AR-30
30
AR-35
35
AR-40
40
AR-45
45
AR-50
50
