Test Pin
[SM Series] (10pcs/pack) |
|---|
|
|---|
| Material | Pin part | Brass |
|---|---|---|
| Resin part | PBT red (UL94V-0) | |
| Finish | Au plating over Ni | |
| Temperature range (degrees Celsius) | -40 to +125 | |
 |

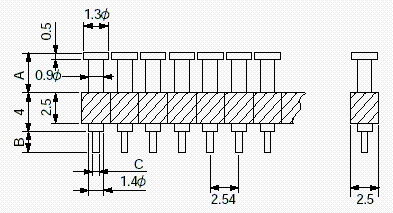

| Model No. | A (mm) | B (mm) | C (phi mm) | Recommended through-hole diameter (phi mm) |
|---|---|---|---|---|
| SM-1-1 | 2.0 | 3.0 | 0.65 | 0.8 |
| SM-1-2 | 3.5 | 3.0 | 0.65 | 0.8 |
| SM-1-3 | 5.5 | 3.0 | 0.65 | 0.8 |
| SM-6-1 | 2.0 | 2.5 | 0.45 | 0.6 |
| SM-6-2 | 3.5 | 2.5 | 0.45 | 0.6 |
