WL-1 and JS-1
|
Wire Wrap Terminal
[WL Series] (10pcs/pack) |
|---|
|

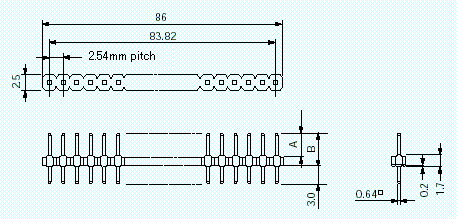

| EXAMPLE |
|---|
|
| Combination of WL-1 and JS-1 |
| Material | Resin part | PBT black (UL94V-0) |
|---|---|---|
| Pin part | Phosphorus bronze | |
| Finsh | Pin part | Au plating over Ni |
| Recommended through-hole diameter (phi mm) | 1.0 to 1.1 | |
| Rated current | 3A | |
| Rated voltage | 250V AC, DC | |
| Insulation resistance | 500M ohm or more | |
| Resisting voltage | 1000V AC, DC 1min | |
| Temperature range (degrees Celsius) | -40 to +150 | |
|
|
