Mac-Eight WIRE WRAP TERMINAL

WIRE WRAP TERMINAL

Wire Wrap Terminal (Angle Type) [WLA Series] (10pcs/pack)

EXAMPLE



Combination of WLA-2-2 and JS-1

34 pins connected each at 2.54mm pitch in each row.
WLA series allow to connect PCB at right angles.
Switch on/off by combining with JS-1.

Material	Resin part	PBT black (UL94V-0)
Material	Pin part	Phosphorus bronze
Finsh	Pin part	Au plating over Ni
Recommended through-hole diameter (phi mm)	1.0 to 1.1
Rated current	3A
Rated voltage	250V AC, DC
Insulation resistance	500M ohm or more
Resisting voltage	1000V AC, DC 1min
Temperature range (degrees Celsius)	-40 to +125

Model No.	L (mm)
WLA-1-1	3
WLA-1-2	4.3
WLA-2-1	3
WLA-2-2	4.3

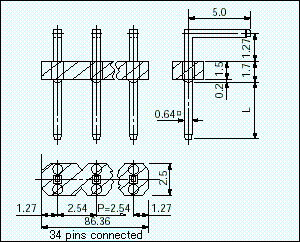

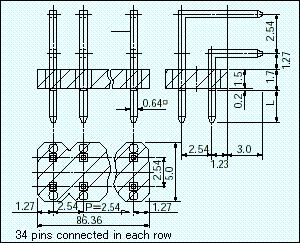

WLA-1 Series	WLA-2

HOW TO ORDER
WLA-2-1-10PW
Put # of pins if necessary. (max 34 pins)
#PW means # of pins on one side.
