BOARD TO BOARD CONNECTOR
Board To Board Connector
[OX Series] (1000pcs/pack)

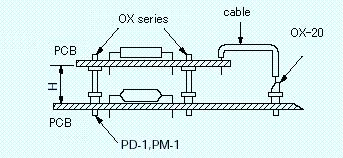

EXAMPLE
Mate/unmate with the combination of OX series and
PD
,
PM
series.
Connected type is
OY series
.
Material
Brass
Finsh
Au plating over Ni
Recommended
through-hole
diameter (phi mm)
0.8
Applicable
socket pin
PD-1, PD-4
,
PM-1
Model No.
A
(mm)
H
(mm)
OX-000
3.6
4.5
OX-001
4.1
5
OX-002
6.1
7
OX-003
9.1
10
OX-004
11.6
12.5
OX-005
14.1
15
OX-000
OX-001
OX-002
OX-003
OX-004
OX-005
*H is the space between PCBs with
PD-1
or
PM-1
.
Male Pin Plug [OX-20 Series]
The terminals may contact each other when they are mounted at 2.54mm pitch.
Insulation tube is recommendable to prevent short circuit.
Also usable as a jumper wire.
Mate/unmate with the combination of OX-20 series and
PD
,
PM
series.
Model No.
A
(phi mm)
B
(phi mm)
How to fix
OX-201
1.4
0.6
Soldering
OX-202
1.6
0.9
Soldering
OX-301
Crimping
OX-201
OX-202
OX-301
