Board To Board Connector (2 Row Type)
[OYW Series] (10pcs/pack) |
|---|
|

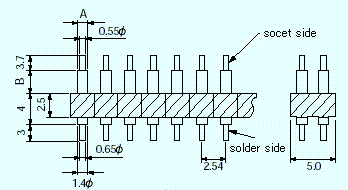

| EXAMPLE |
|---|
|
|
| Material | Resin part | PBT black (UL94V-0) |
|---|---|---|
| Pin part | Brass | |
| Finsh | Pin part | Au plating over Ni |
| Temperature range (degrees Celsius) | -40 to +125 | |
| Applicable socket pin | PM-100 | |
| Model No. | A (phi mm) | B (mm) | H (mm) | Recommended through-hole diameter (phi mm) |
|---|---|---|---|---|
| OYW-002 | 0.55 | 0 | 8.18 | 0.8 |
| OYW-003 | 1.2 | 1.82 | 10 | 0.8 |
| OYW-004 | 1.2 | 4.32 | 12.5 | 0.8 |
| OYW-005 | 1.2 | 6.82 | 15 | 0.8 |
| OYW-006 | 1.2 | 11.82 | 20 | 0.8 |
