Board To Board Connector
[SX Series] (1000pcs/pack) |
|---|
|

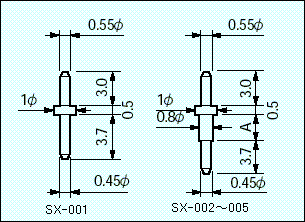

| EXAMPLE |
|---|
|
|
| Material | Brass |
|---|---|
| Finsh | Au plating over Ni |
| Applicable socket pin | PD-6, PM-6 |
| Model No. | A (mm) | H (mm) | Recommended through-hole diameter (phi mm) |
|---|---|---|---|
| SX-001 | 0 | 4.7 | 0.6 |
| SX-002 | 2.3 | 7.0 | 0.6 |
| SX-003 | 5.3 | 10.0 | 0.6 |
| SX-004 | 7.8 | 12.5 | 0.6 |
| SX-005 | 10.3 | 15.0 | 0.6 |
