Board To Board Connector
[SY Series] (10pcs/pack) |
|---|
|
| EXAMPLE |
|---|
|
| SY series with PM-6 |
|
| Material | Resin part | PBT black (UL94V-0) |
|---|---|---|
| Pin part | Brass | |
| Finsh | Pin part | Au plating over Ni |
| Temperature range (degrees Celsius) | -40 to +125 | |
| Applicable socket pin | PD-6, PM-6 | |

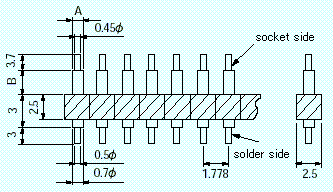

| Model No. | A (phi mm) | B (mm) | H (mm) | Recommended through-hole diameter (phi mm) |
|---|---|---|---|---|
| SY-002 | 0.45 | 0 | 7.2 | 0.6 |
| SY-003 | 0.6 | 2.8 | 10.0 | 0.6 |
| SY-004 | 0.6 | 5.3 | 12.5 | 0.6 |
| SY-005 | 0.6 | 7.8 | 15.0 | 0.6 |
| SY-006 | 0.6 | 12.8 | 20.0 | 0.6 |
 |
