BOARD TO BOARD CONNECTOR
(SUPER SMALL TYPE)
Board To Board Connector (Angle, 2 Row Type)
[MZW Series] (10pcs/pack)
EXAMPLE
Use to connect PCB at right angle.

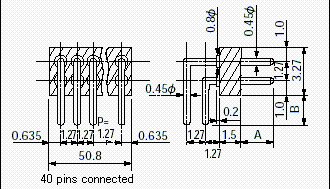

40 pins connected each at 1.27mm pitch in 2 row (MZW-1 series).

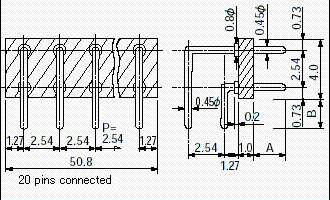

20 pins connected each at 2.54mm pitch in 2 row (MZW-3 series).
Specifications are the same as
MZ Series
Model No.
A
(mm)
B
(mm)
MZW-1-1
2.2
2.2
MZW-1-2
3.0
3.0
Model No.
A
(mm)
B
(mm)
MZW-3-1
2.2
2.2
MZW-3-2
3.5
3.5
HOW TO ORDER
MZW-1-1-
10PW
Put # of pins if necessary.
#PW
means # of pins on one side.
MZW-1-1 (max 40PW)
MZW-3-1 (max 20PW)
