WIRE WRAP TERMINAL (SMT)
Wire Wrap Terminal
[HWW-20PW Series] (10pcs/pack)
|
How to use |
 |

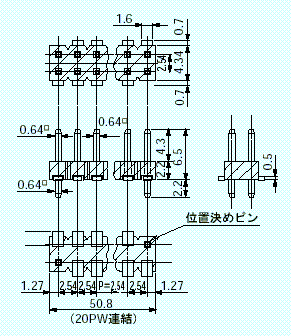

Dimension plan |
 |
- Use this terminal with JS-1, JSW-1 as the sustitute.
- This series has pins also on both ends which make the placement easy.
- Reflow type
Material | Pin part | Brass |
Resin part | PCT black (UL94V-0) |
Finish | HWW-20PW-G | Au plating over Ni |
HWW-20PW-S | Sn plating over Ni |
Rated current | 3A |
Insulation resistance | 500M ohm or more |
Dielectric strength | 1000V AC, DC 1min |
Temperature range (degrees Celsius) | -40 to +125 |

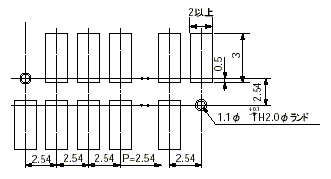

Recommended pat layout |
 |
- HOW TO ORDER
HWW-10PW-G
Put # of pins if necessary. (max 20PW)
#PW means # of pins on one side.
Use HW-2P for HWW-1PW
