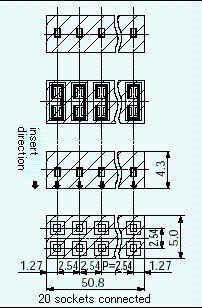

Jumper Socket
[JSW-1] (10pcs/pack) |
PAT |
|---|
|
|
|
| Material | Contact part | Phosphorus bronze |
|---|---|---|
| Resin part | PBT black (UL94V-0) | |
| Finish | Contact part | Au plating over Ni |
| Other | Ni plating | |
| Recommended male pin diameter (square mm) | 0.64 | |
| Rated current | 3A | |
| Rated voltage | 250V AC, DC | |
| Contact resistance | 20m ohm or less | |
| Mating/unmating (durability) | 100 times or less | |
| Mating/unmating forces (1 pin) | 70g or more | |
| Temperature range (degrees Celsius) | -40 to +125 | |
