WIRE WRAP TERMINAL



Wire Wrap Terminal (3 Row Type)
[WLT Series] (10pcs/pack)

EXAMPLE
Combination of
WLT-1 and JSW-1
MaterialResin partPBT black (UL94V-0)
Pin partPhosphorus bronze
FinshAu plating over Ni
Recommended
through-hole
diameter (phi mm)		1.0 to 1.1
Rated current3A
Insulation resistance500M ohm or more
Resisting voltage1000V AC, DC 1min
Temperature range
(degrees Celsius)		-40 to +125

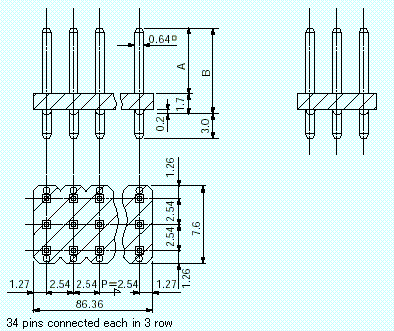

Model No.A
(mm)		B
(mm)
WLT-14.36.0
WLT-88.09.7
WLT-1010.011.7
WLT-1212.013.7
WLT-1414.015.7
