WIRE WRAP TERMINAL
Wire Wrap Terminal (2 Row Type)
[WLW Series] (10pcs/pack)
EXAMPLE
Combination of
WLW-1 and
JS-1

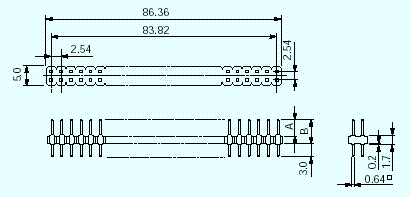

34 pins connected each at 2.54mm pitch in 2 row.
Specifications are the same as
WL series
.
Model No.
A
(mm)
B
(mm)
WLW-1
4.3
6
WLW-8
8
9.7
WLW-10
10
11.7
WLW-12
12
13.7
WLW-14
14
15.7
HOW TO ORDER
WLW-1-
10PW
Put # of pins if necessary. (max 34PW)
#PW
means # of pins on one side.
