MAC8 하이브리드IC용

하이브리드 IC용

하이브리드IC용[CD시리즈] (1팩1,000개입)

체크용, 하이브리드IC용, 각종 메일핀등에 사용 해 주십시오.
재질
- 황동
- 린청동(CD-2,CD-3,CD-4만)
처리..........니켈 도금
전류용량
- CD-3시리즈...........2A
- CD-4시리즈...........2A
- CD-5시리즈...........3A
- CD-7시리즈...........4A
- CD-10시리즈...........7A
- CD-12시리즈...........10A
- CD-14시리즈...........11A
- CD-15시리즈...........12A
- CD-20시리즈...........15A

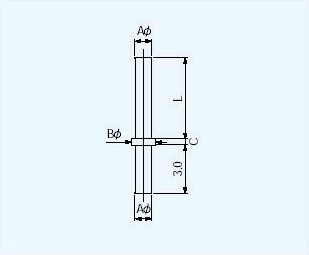

품번	A	B	C	L
CD-2-3	0.2	0.4	0.1	3
CD-2-5	0.2	0.4	0.1	5
CD-3-3	0.3	0.6	0.15	3
CD-3-5	0.3	0.6	0.15	5
CD-3-8	0.3	0.6	0.15	8
CD-3-10	0.3	0.6	0.15	10
CD-3-15	0.3	0.6	0.15	15
CD-4-3	0.4	0.7	0.2	3
CD-4-5	0.4	0.7	0.2	5
CD-4-8	0.4	0.7	0.2	8
CD-4-10	0.4	0.7	0.2	10
CD-4-15	0.4	0.7	0.2	15
CD-4-20	0.4	0.7	0.2	20
CD-5-5	0.5	0.8	0.2	5
CD-5-10	0.5	0.8	0.2	10

품번	A	B	C	L
CD-5-15	0.5	0.8	0.2	15
CD-5-20	0.5	0.8	0.2	20
CD-7-5	0.7	1.2	0.3	5
CD-7-10	0.7	1.2	0.3	10
CD-7-15	0.7	1.2	0.3	15
CD-7-20	0.7	1.2	0.3	20
CD-10-5	1.0	1.5	0.3	5
CD-10-10	1.0	1.5	0.3	10
CD-10-15	1.0	1.5	0.3	15
CD-10-20	1.0	1.5	0.3	20
CD-12-5	1.2	1.8	0.5	5
CD-12-10	1.2	1.8	0.5	10
CD-12-15	1.2	1.8	0.5	15
CD-12-20	1.2	1.8	0.5	20

품번	A	B	C	L
CD-14-5	1.4	2.0	0.5	5
CD-14-6	1.4	2.0	0.5	6
CD-14-10	1.4	2.0	0.5	10
CD-14-15	1.4	2.0	0.5	15
CD-14-20	1.4	2.0	0.5	20
CD-15-5	1.5	2.5	0.5	5
CD-15-10	1.5	2.5	0.5	10
CD-15-15	1.5	2.5	0.5	15
CD-15-20	1.5	2.5	0.5	20
CD-20-5	2.0	3.0	0.5	5
CD-20-6.5	2.0	3.0	0.5	6.5
CD-20-10	2.0	3.0	0.5	10
CD-20-15	2.0	3.0	0.5	15
CD-20-20	2.0	3.0	0.5	20
